 does anyone know where I can find an online wiring diagram? |
  |
 Dec 6, 2009 - 6:49 PM
|

|
|
Enthusiast  Joined Apr 6, '09 From Mass Currently Offline Reputation: 0 (0%)  |
I need a wiring diagram for a 94 celica gt 2.2. Cant find one anywhere. Thanks guys
|
|
Dec 6, 2009 - 7:44 PM
|
|
 Enthusiast Joined Jan 17, '08 From JB MDL, NJ Currently Offline Reputation: 30 (100%) |
CelicaTech has one. But you have to sign up for it I believe.
|
|
Dec 6, 2009 - 9:13 PM
|
|
|
Enthusiast Joined Jun 9, '09 From Saint Louis Currently Offline Reputation: 0 (0%) |
I have the wiring diagrams, but they are segmated by system. Any particular system you need?
Phil |
|
Dec 6, 2009 - 9:49 PM
|
|
|
Enthusiast Joined Apr 6, '09 From Mass Currently Offline Reputation: 0 (0%) |
QUOTE (pyeatts @ Dec 6, 2009 - 10:13 PM)  I have the wiring diagrams, but they are segmated by system. Any particular system you need? Phil yes i need it for the ignition system i think? Im trying to find out what the power wire to my coil connects to. I think it runs somewhere the the ecu, but not sure where |
|
Dec 7, 2009 - 1:21 PM
|
|
|
Enthusiast Joined Jun 9, '09 From Saint Louis Currently Offline Reputation: 0 (0%) |

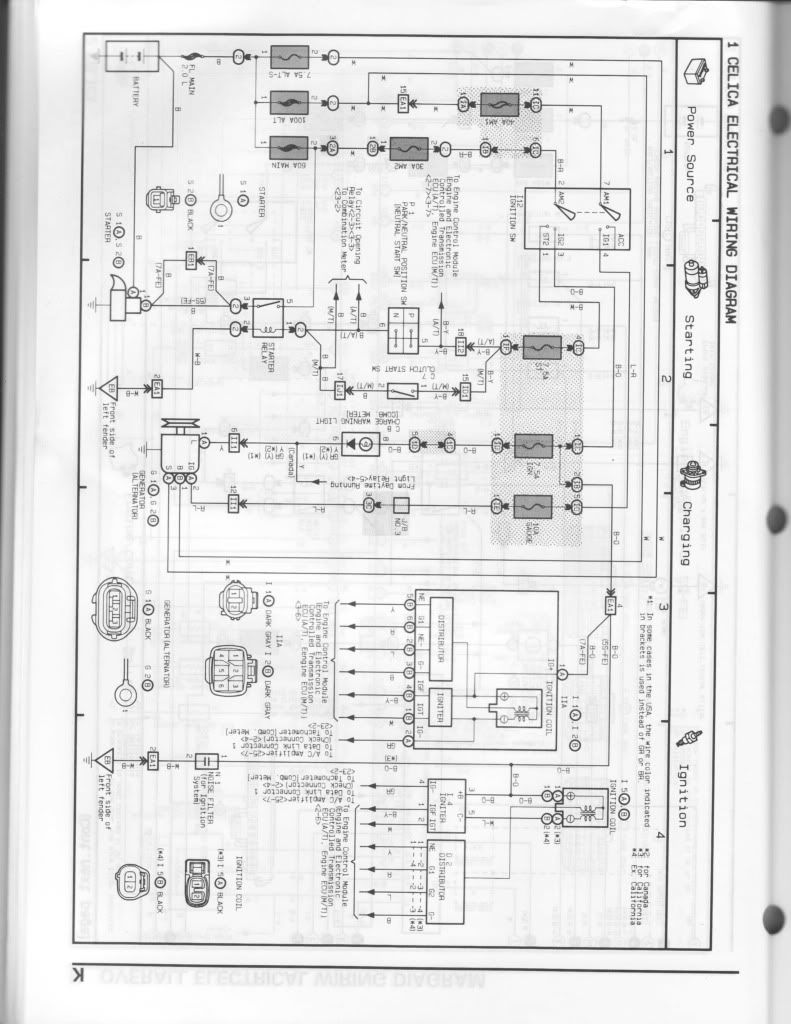

 Here's the power wiring diagram. I can send a pdf for printing, need email address. |
|
Dec 7, 2009 - 8:12 PM
|
|
|
Enthusiast Joined Jun 9, '09 From Saint Louis Currently Offline Reputation: 0 (0%) |
  Ecu diagrams! |
|
Dec 9, 2009 - 4:25 PM
|
|
|
Enthusiast Joined Apr 6, '09 From Mass Currently Offline Reputation: 0 (0%) |
awesome, thanks guys. I still cant figure out the problem. THe power wire at my coil, which is connected to the power wire at my igniter, cuts in and out of power. not sure why. when the wire has power, the car runs fine, when it doesnt, i cant start the car or keeep it running
|
|
Dec 9, 2009 - 4:32 PM
|
|
 Enthusiast Joined Feb 7, '07 From Portland, Oregon Currently Offline Reputation: 67 (96%) |
go to celicatech.com, they've got all the BGBs and EWGs
--------------------  |
|
Dec 17, 2009 - 2:26 AM
|
|
|
Enthusiast Joined Dec 16, '09 From USA Currently Offline Reputation: 0 (0%) |
QUOTE (Gtguy22 @ Dec 9, 2009 - 5:25 PM) awesome, thanks guys. I still cant figure out the problem. THe power wire at my coil, which is connected to the power wire at my igniter, cuts in and out of power. not sure why. when the wire has power, the car runs fine, when it doesnt, i cant start the car or keeep it running I have a long winded description over in the general discussion section. the thread is "inconsistent spark" |
|
