 any one install a NEO on a 5s yet?? |
 May 19, 2007 - 2:11 PM
|

|
 Enthusiast  Joined May 15, '05 From Toronto Currently Offline Reputation: 4 (100%)  |
So, i bought my self a Apexi AFC Neo today, and am plannin on wiring it up on tuesday when i have class. Has any one wired one of these up to a 5s yet?? I know Steph got one wired up to her ST, but not 100$ sure about any one with a GT. i donno if its like the SACFII, but its got a 15 wire wiring harness, but it says for a non v-tec, non RB26DETT, and a non- karman sensor vehicle, only use 9 of the wires. So pretty much you only need these wires: IG power, IG power *again*, RPM, throttel, ground, ground, airflow/pressure sensor, airflow/pressure sensor and illumination *ie power*. Does any one have a pic of a 5S pinout that can highlight these wires for me? Thanks
Bryan |
 |
Replies
|
May 19, 2007 - 2:32 PM
|
|
 Enthusiast Joined Mar 31, '04 From Summerville, SC Currently Offline Reputation: 5 (100%) |

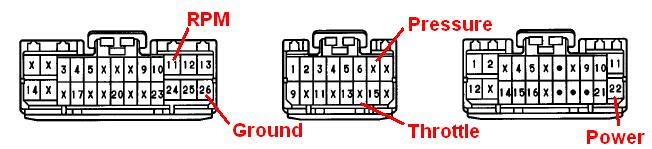

I whipped this up for you real quick, it's using the diagram for a '95 Auto, but it should be the same for you.
-------------------- -Dr Tweak, 6GC's resident engine swap wiring expert extraordinaire Click here to see my swaps drtweak@phoenixtuning.com |
Posts in this topic
Valo666 any one install a NEO on a 5s yet?? May 19, 2007 - 2:11 PM
Valo666 ty tweak. can some one with a stick verify this is... May 19, 2007 - 3:23 PM Dr_Tweak Just compare it against the instructions, the Toyo... May 19, 2007 - 3:51 PM Valo666 they dont list a 5sfe though, only 3sfe and i wann... May 19, 2007 - 5:13 PM 6strngs yeah, I've got one in my car. and yeah, it... May 20, 2007 - 6:10 PM
Dr_Tweak QUOTE(6strngs @ May 20, 2007 - 11:10... May 20, 2007 - 10:17 PM Valo666 thanks dude. May 20, 2007 - 11:45 PM LewFX on my car there pressure wire is missing from the ... Nov 10, 2007 - 8:30 PM presure2 QUOTE(LewFX @ Nov 10, 2007 - 9:30 PM... Nov 11, 2007 - 8:41 AM 6strngs might be in a different place though cause you hav... Nov 12, 2007 - 1:38 AM LewFX what color is the pressure wire? i tapped a blue o... Nov 12, 2007 - 1:55 PM LewFX anyone know what color the pressure wire is?? Nov 13, 2007 - 1:04 AM urbandork QUOTE(LewFX @ Nov 12, 2007 - 10:04 P... Nov 13, 2007 - 1:34 AM LewFX i dont have any grey blk wire, can anyone else can... Nov 13, 2007 - 9:55 PM lagos on the middle ecu plug, pin 2 from the right when ... Nov 13, 2007 - 11:49 PM LewFX okay i checked the map sensors wires, its brown, b... Nov 13, 2007 - 11:58 PM MaskedMan Yes, the #2 wire coming from the Map sensor is blu... Nov 14, 2007 - 12:45 AM |
