> Complete Japanese TRD part catalog, --99% complete--
post May 28, 2013 - 7:13 PM
+Quote Post
Rusty



Moderator
*****
Joined Nov 5, '07
From New Zealand
Currently Offline

Reputation: 3 (100%)




Attached Image


*** UPDATE Photos are doubled up on Photobucket and uploaded on 6GC.net ***

how to read:
Part name: Part number (Original listed price in /Yen) Availability. Fitment. Notes.

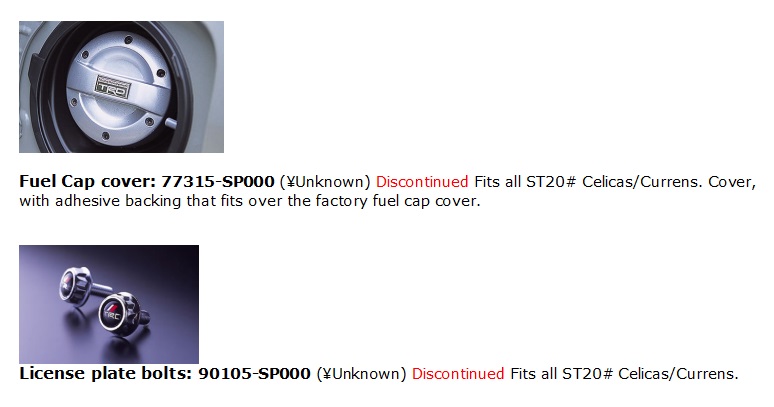

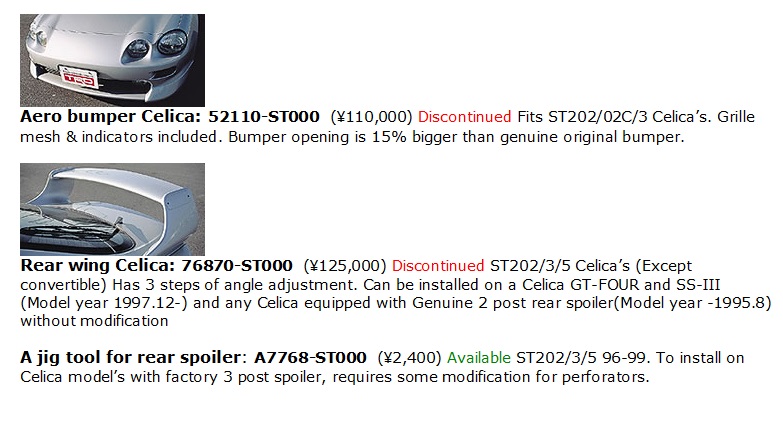

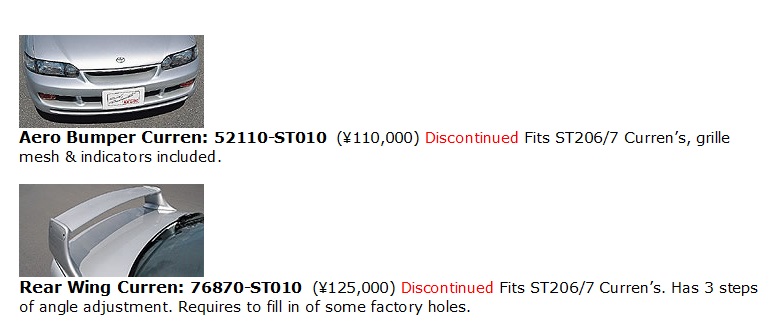

Exterior parts: *the parts called 'TRD side skirts' and 'TRD spiltters' are not listed here, as they are not a TRD part.

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image

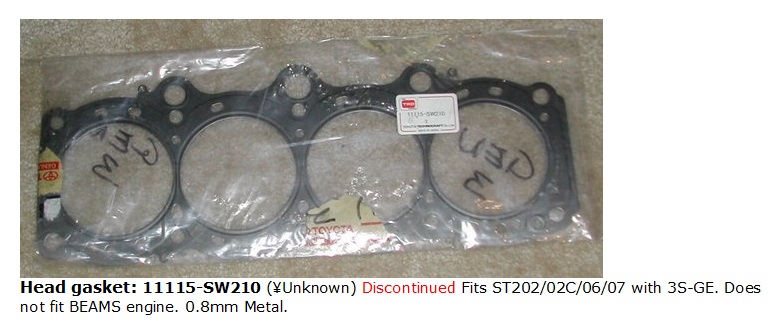

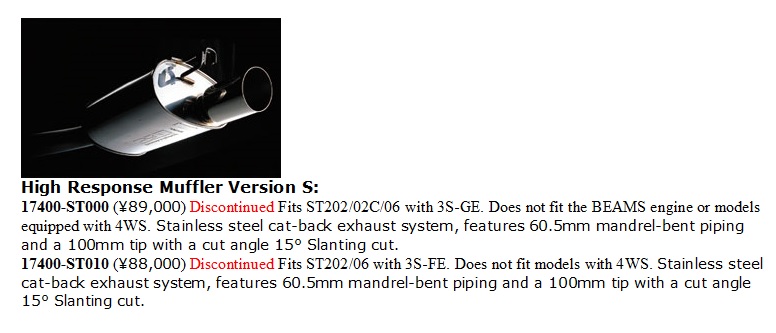

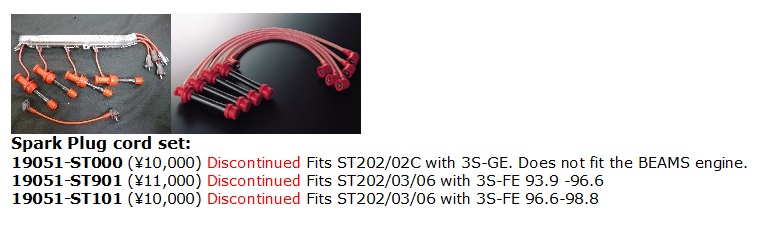

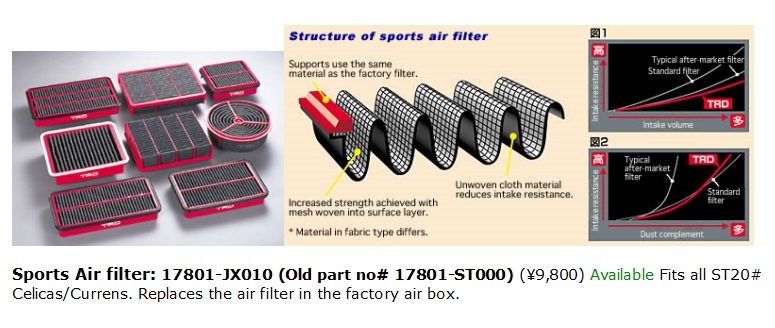

Engine Parts:


Attached Image
Attached Image
Attached Image
Attached Image

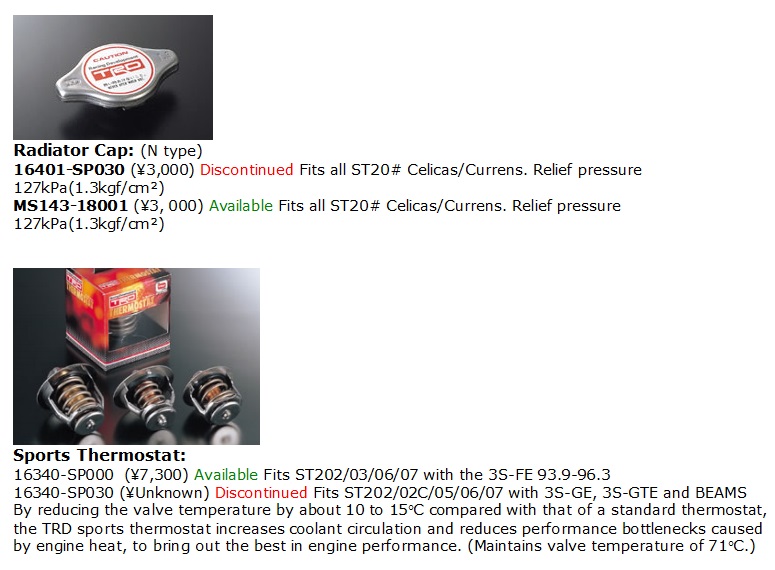

Oil & Cooling system:

Attached Image
Attached Image

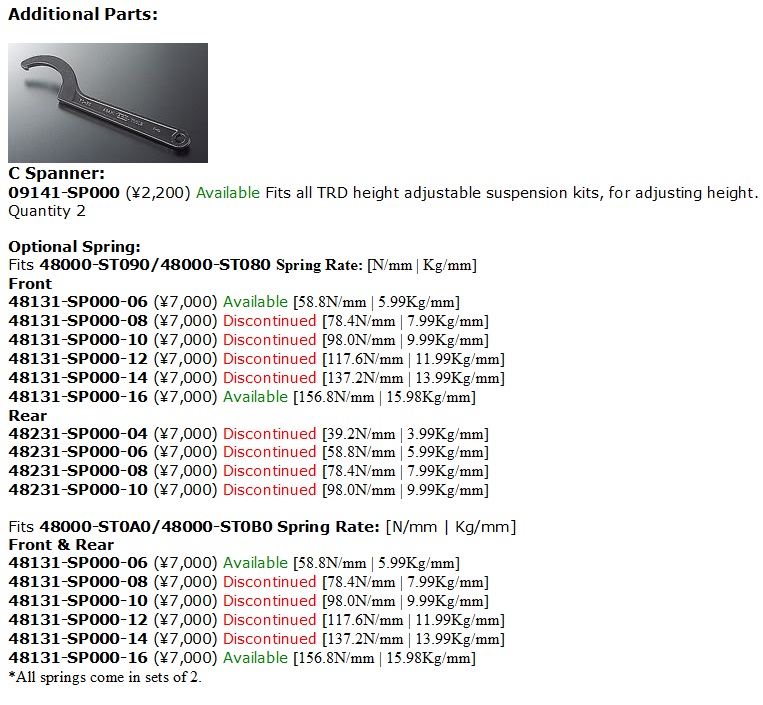

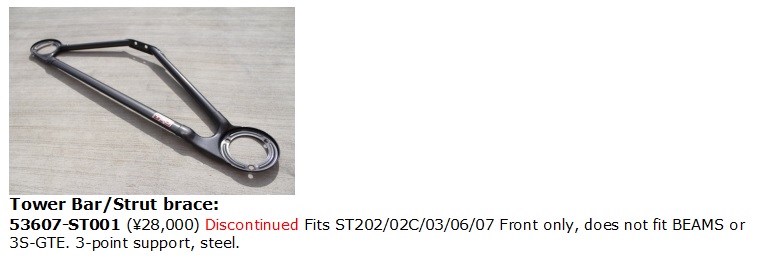

Suspension, Mounts & Bushes:


Attached Image

** GT4 rear
F 1764/696N
R 1245/490N
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image



** GT4 rear
F 1764/696N
R 1245/490N

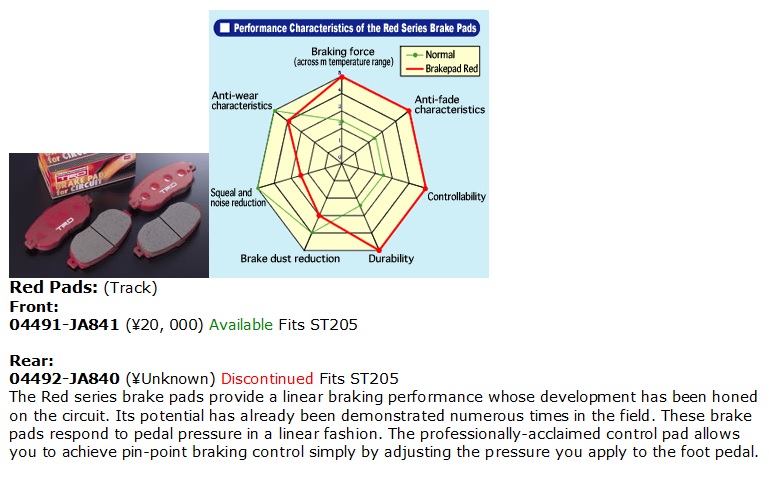

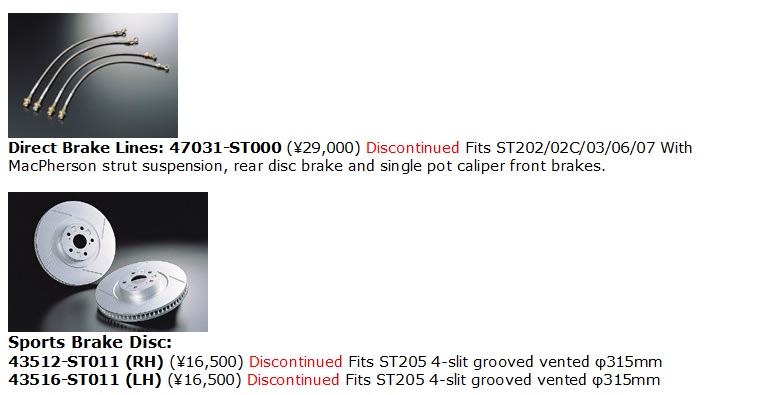

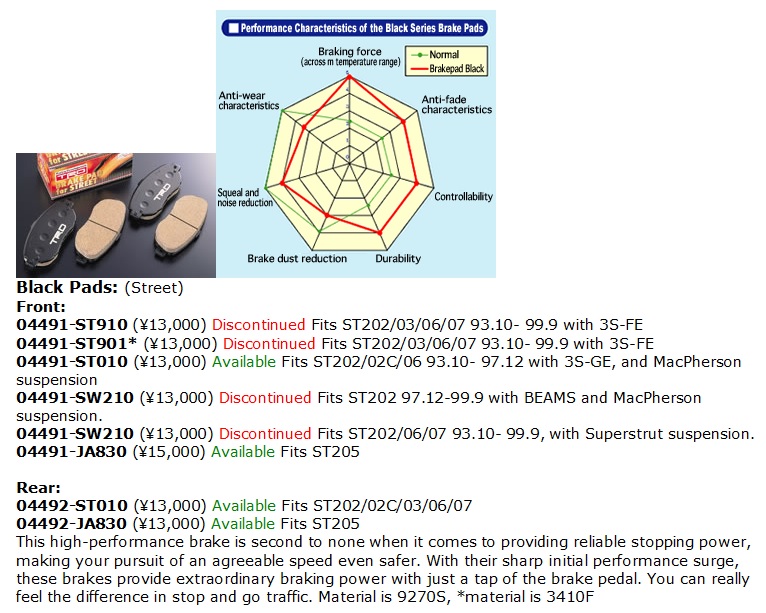

Braking:


Attached Image
Attached Image
Attached Image

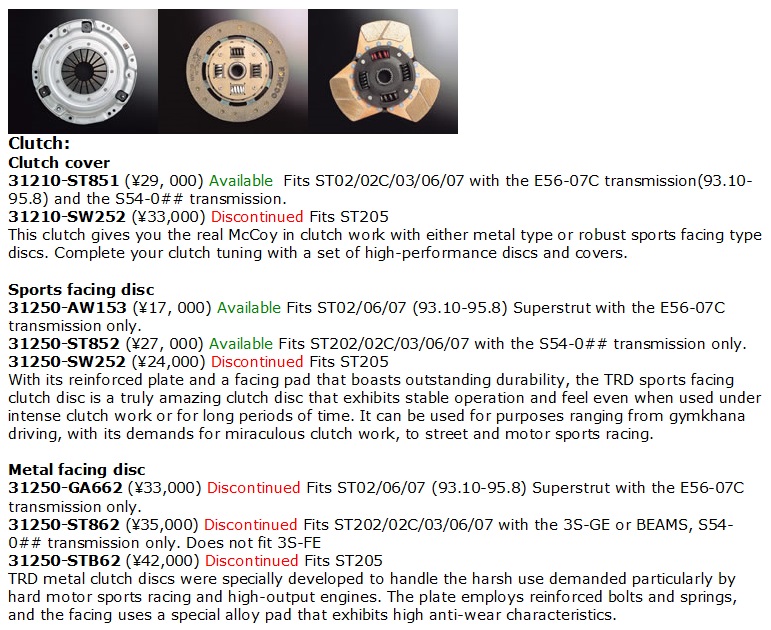

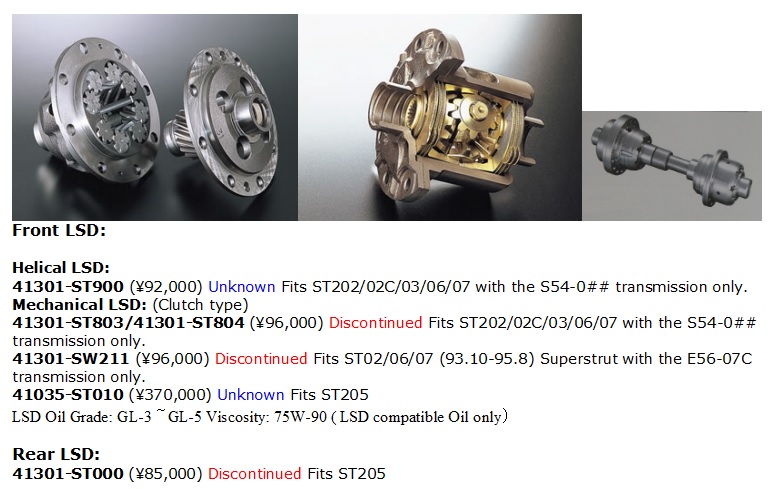

Drivetrain:

Attached Image
Attached Image
Attached Image





Interior & Driving support parts:









Miscellaneous Parts:


--------------------
post Jun 14, 2013 - 8:20 PM
+Quote Post
Rusty



Moderator
*****
Joined Nov 5, '07
From New Zealand
Currently Offline

Reputation: 3 (100%)




so just the miscellaneous & suspension section left, going convert the spring rate numbers from Nm/mm to Kg/mm

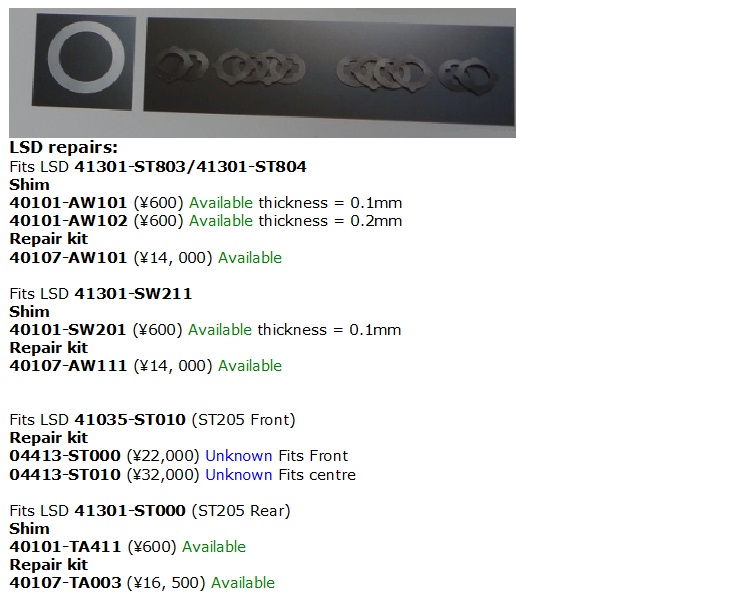

here's some extra pictures of the front TRD LSD





--------------------
